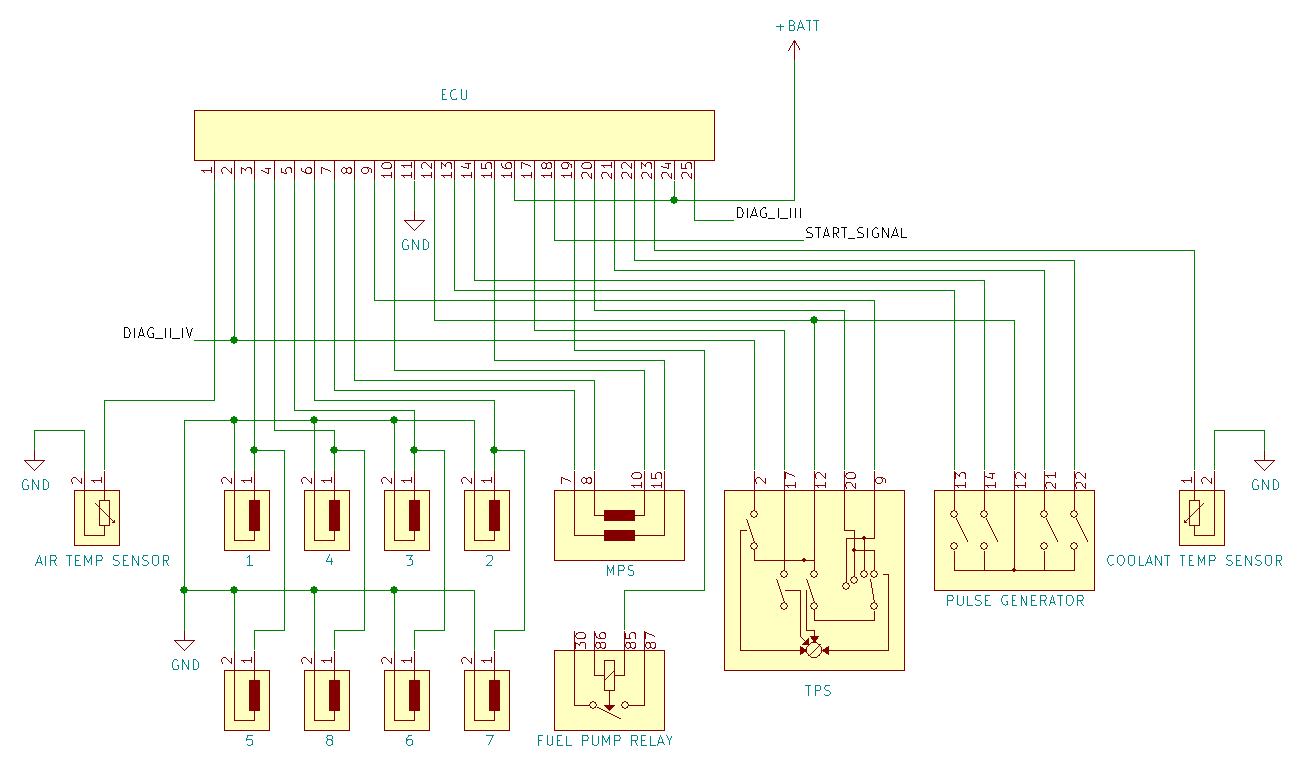

Inspired by the diagram in the Mercedes EFI training manual for mechanics. This shows how the parts of the D-Jetronic system are wired together, including pin numbers.

The grounds on this diagram are separate symbols for clarity but in the vehicle all of the grounds are tied together at a single point bolted to the engine.
